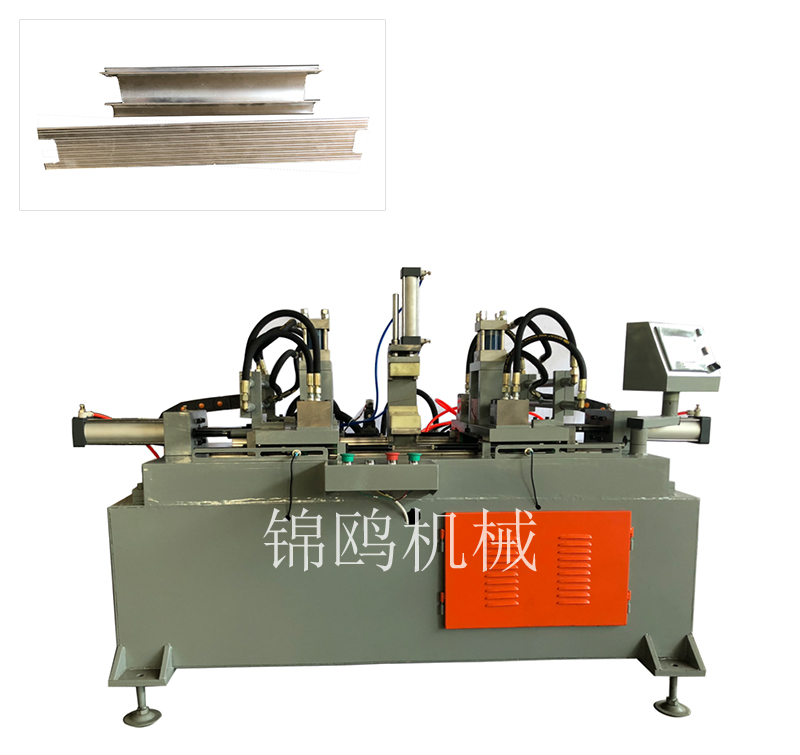

踏板沖切機(jī)
型號(hào):JOM-J004
控制系統(tǒng):PLC + 觸摸屏
外形尺寸:2700*1650*1800
功率:7.5KW
效率:4s
踏管長度范圍:300~650( 可定制)
重量:1800kg
Step Punching Cutting Machine
Model:JOM-J004
Step length range :300-580mm
Efficiency :4s /work cycle
Pressure : Hydraulic
Oil tank : 90L
Oil Pump Max output pressure : 7MPa
Motor Power : 7.5Kw
Air Put : 0.5-0.8Mpa
Voltage 380V/50HZ/3P
N.T: 1500KGS
Machine size: 270x165x180cm
HS CODE:8462490000
