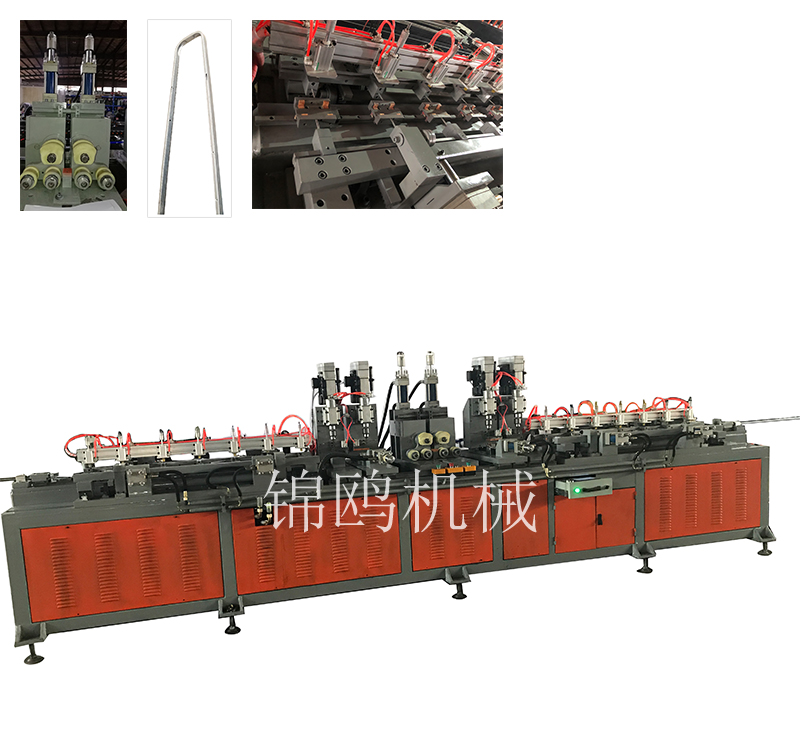

前架彎管成型一體機
型號:JOM-J002
工作效率:15秒
產(chǎn)品加工范圍:2300mm到7000mm(3步到8步)
功率:5.5千瓦
氣壓:7 mpa
尺寸:5800 x1600x1850mm
重量:2500公斤
Bending and Drilling Automatic machine
Model:JOM-J002
Profile lenght (mm): 2300 up to 7000 (3 steps to 8 steps)
machines for 40X20MM
Power Input : with Transformer range from 380V -415V 50 HZ. Three phase
Power: 5.5 kW
System Press:7Mpa
Hydraulic unit (integrated): 150 bar
Pneumatic pressure (required): 6 bar
Dimensions: 6000x1600x1850 mm
HS CODE:8462299000
