單邊漲牙機
型號:JOM-D004
可定制型號:1-8工位,直斜均可
工作效率:5秒/工作周期
漲牙模具可根據踏管形狀定制
梯子寬度調節范圍:不限制
梯子間距調節范圍:260-300mm
最大漲牙行程:60 mm

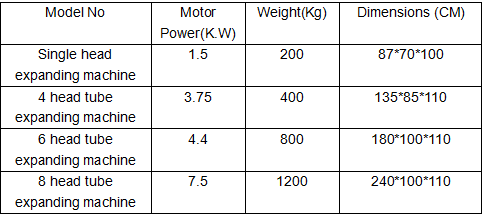

設備型號 設備能耗(Kw) 設備重量(Kg) 外形尺寸(CM)
單頭漲牙機 1.5 200 87*70*100
四頭漲牙機 3.75 400 135*85*110
六頭漲牙機 4.4 800 180*100*110
八頭漲牙機 7.5 1200 240*100*110

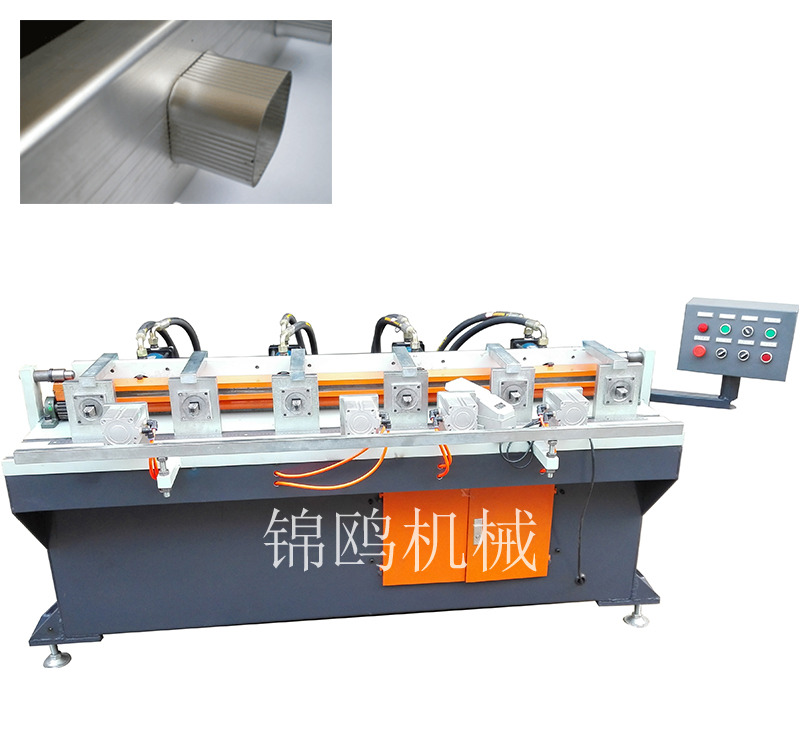

Single side tube expanding machine
Model:JOM-D004
Can be customized Model: 1-8 work station,both straight or beveled edges can expand.
Work efficiency: 5 seconds / work cycle
Expanding mold can be customized according to the shape of the tube
Ladder width adjustment range: no limit
ladder spacing adjustment range: 260-300mm
Maximum expanding stroke: 60 mm
HS CODE :8462999000
